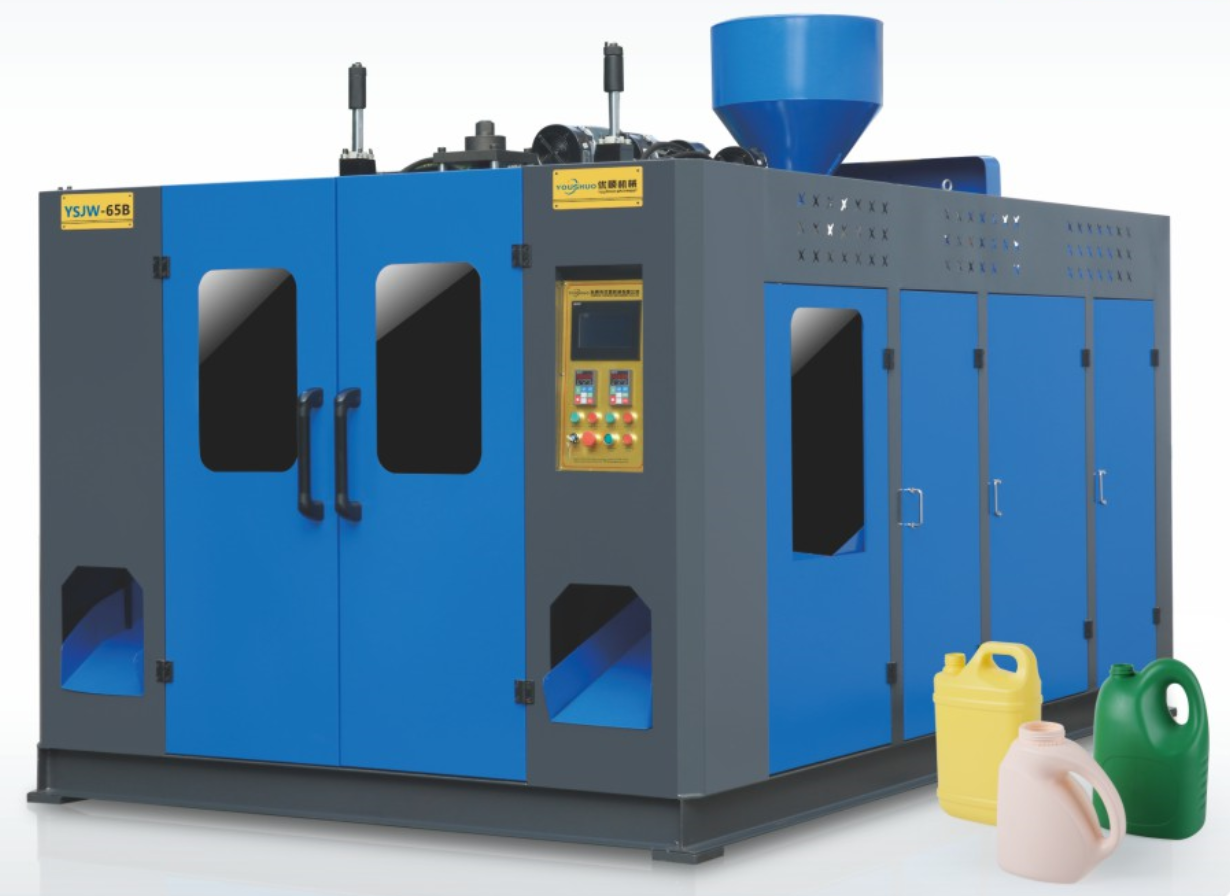

65B Model Extrusion blow molding machine
  • 65B Model Extrusion blow molding machine

    65B Model moving automatic plastic Extrusion blow molding machine(suitable for produce 100-3000ml blowing parts)

    Technical parameters

     项目 general information

    单位Unit

    参数 Parameter

    适用材料             Applicable materials

    /

    PE,PP,ABS,EVA

    最大制品容器          Max.Product Volume

    L

    3

    空循环                Dry cycle

    Pcs/h

    1000*2

    螺杆直径              Screw Diameter

    mm

    65

    螺杆长径比            Screw L/D ratio

    L/D

    25

    挤出电机功率          Extrusion motor power

    KW

    15

    螺杆加热功率          Screw heating capacity

    KW

    15

    螺杆加热区段          No.of heating zone

    Zone

    3

    HDPE挤出量          Output of HDPE

    Kg/hr

    70

    伺服油泵电机功率          Oil pump drive power

    KW

    14

    锁模力                Clamping force

    KN

    40

    模具厚度              Mold thickness

    MM

    110-210

    容模尺寸              Size of Mold

    (WxH)mm

    290*320

    口模最大直径          Max.die diameter

    mm

    130

    模头加热功率          Die heat capacity

    KW

    6

    吹气压力              Blowing pressure

    Mpa

    0.6

    气体用量              Air Volume

    M3/Min

    0.6

    机械净重(约)        Weight of machine

    Ton

    4

    机械外形尺寸          Size of machineLxWxH)

    mm

    3100*1700*2100
